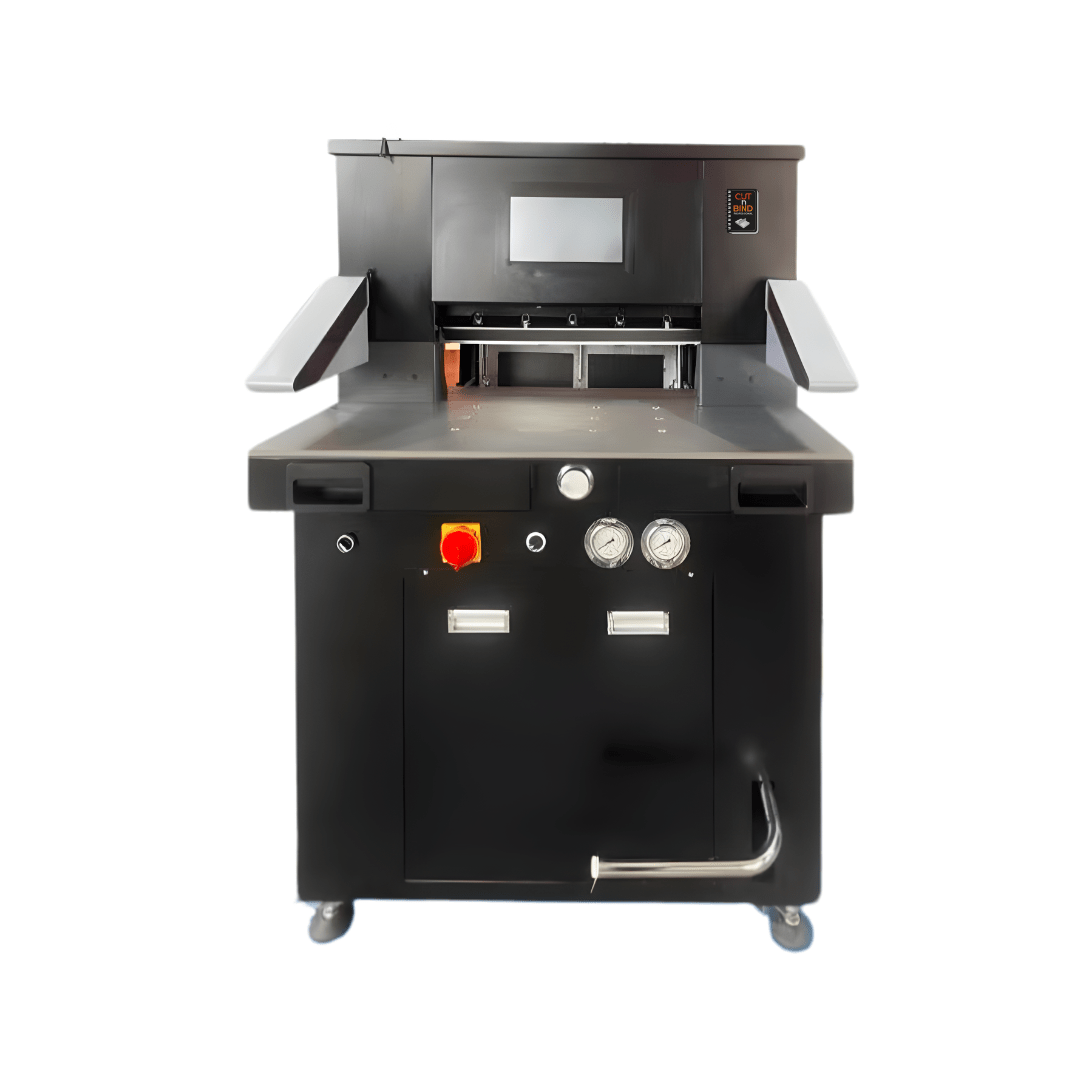

Electric Paper Cutting Machine
The Q-Cut 530H is a high-performance Hydraulic paper cutter capable of cutting sheets up to 530 mm in size It combines advanced digital controls with adjustable settings to ensure accuracy, consistency, and safety. The Qcut 530H delivers clean, reliable cuts with every use, maximizing productivity and streamlining operations.
Feature
- Hydraulic bidirectional combination valve body
- Heavy-duty structural design
- Equipped with an independent oil supply and dual pressure gauges
- The paper clamp system adopts continuous oil supply, eliminating the need for pressure
maintenance - Ultra-quiet operation, suitable for office environments
- Double-sided ball screw and double-sided hard shaft with smooth rod linkage to ensure
accurate and stable paper pushing - Integrated rear platform casting with foldable patented technology
- Equipped with an infrared safety grating system
Technical Specification:
| Maximum cutting size max (mm) | 530*530 |
| Maximum cutting thickness high (mm) | 100 |
| Minimum cutting size min (mm) | 30 |
| Cutting accuracy (mm) | ±0.2 |
| Paper pressing method | Hydraulic + mechanical foot pedal / hydraulic |
| Paper cutting method | Hydraulic |
| Display Touch | 10.1 inches |
| Power parameter | 220V ±10% 50HZ 2.2KW |
| Size (mm) | 960 x 1270 x 1450 |
| Weight (kg) | 450 |
